Fade_2D is a class that contains a Delaunay triangulation. More...

#include <Fade_2D.h>

Public Member Functions
	Fade_2D (Fade_2D &other, std::vector< Zone2 * > vZoneIn=std::vector< Zone2 * >(), std::vector< Zone2 * > vZoneOut=std::vector< Zone2 * >())
	Copy constructor. More...

	Fade_2D (unsigned numExpectedVertices=3)
	Constructor of the triangulation class. More...

	~Fade_2D ()
	Destructor.

void	applyConstraintsAndZones ()
	Apply conforming constraints and zones (deprecated!) More...

bool	checkValidity (bool bCheckEmptyCircleProperty, const char *msg) const
	Checks the validity of the triangulation. More...

Bbox2	computeBoundingBox () const
	Computes the axis-aligned bounding box of the triangulation. More...

ConstraintGraph2 *	createConstraint (std::vector< Segment2 > &vSegments, ConstraintInsertionStrategy cis, bool bOrientedSegments=false)
	Insert constraint edges (edges, polyline or polygon) . More...

Zone2 *	createZone (const std::vector< ConstraintGraph2 * > &vConstraintGraphs, ZoneLocation zoneLoc, const Point2 &startPoint, bool bVerbose=true)

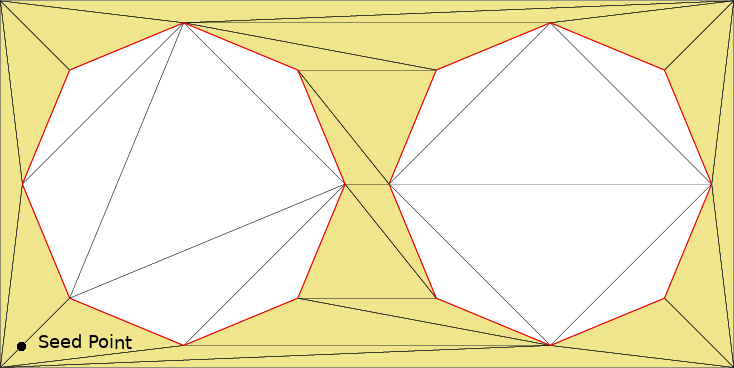

	Create a Zone2 bounded by multiple ConstraintGraph2 objects by growing from a seed point. More...

Zone2 *	createZone (ConstraintGraph2 *pConstraintGraph, ZoneLocation zoneLoc, bool bVerbose=true)
	Create a Zone2 . More...

Zone2 *	createZone (ConstraintGraph2 *pConstraintGraph, ZoneLocation zoneLoc, const Point2 &startPoint, bool bVerbose=true)
	Create a Zone2 bounded by a ConstraintGraph2 object by growing from a seed point. More...

Zone2 *	createZone (std::vector< Triangle2 * > &vTriangles, bool bVerbose=true)
	Create a Zone2 defined by a vector of triangles. More...

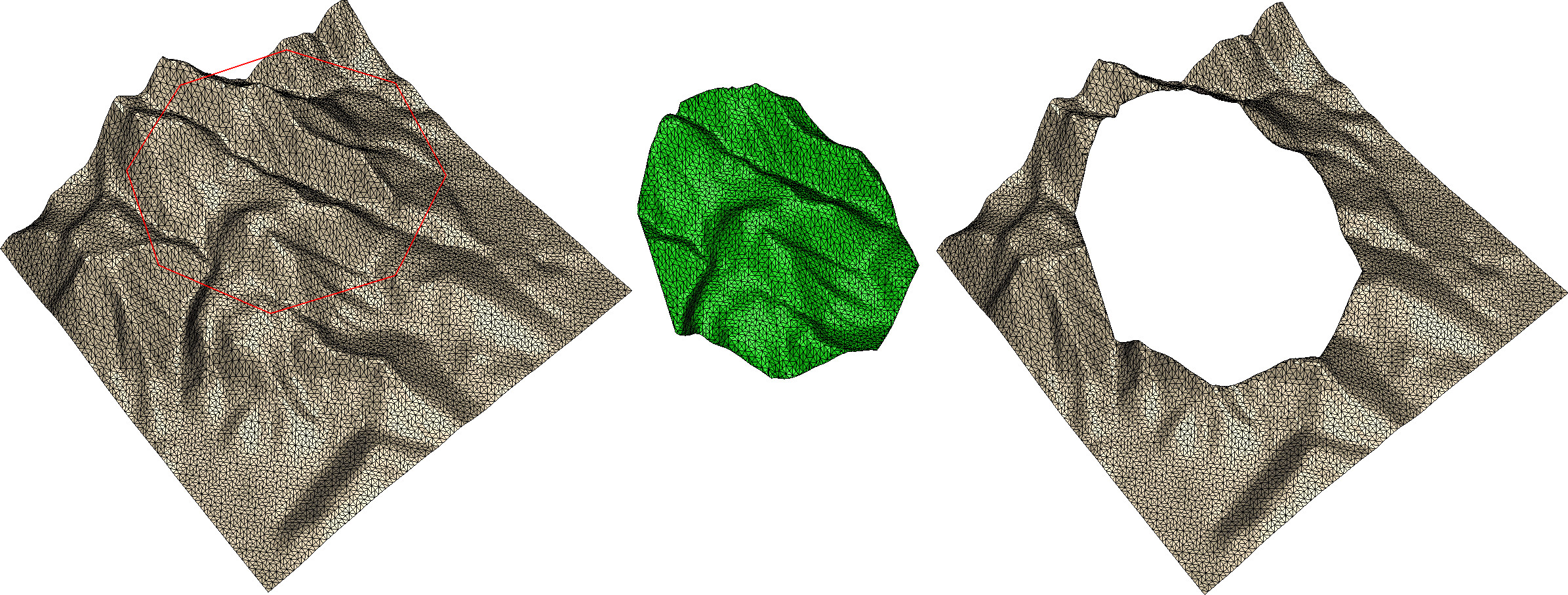

Zone2 *	createZone_cookieCutter (std::vector< Segment2 > &vSegments, bool bProtectEdges)
	Cookie Cutter (deprecated) More...

Zone2 *	createZone_cookieCutter (std::vector< Segment2 > &vSegments, bool bProtectEdges, ConstraintGraph2 &pProtectedEdgesCG, ConstraintGraph2 &pBoundaryCG)
	Cookie Cutter (deprecated) More...

Zone2 *	createZone_cookieCutter2 (std::vector< Segment2 > &vSegments, bool bProtectEdges)
	Cookie Cutter2. More...

Zone2 *	createZone_cookieCutter2 (std::vector< Segment2 > &vSegments, bool bProtectEdges, ConstraintGraph2 &pProtectedEdgesCG, ConstraintGraph2 &pBoundaryCG)
	Cookie Cutter2. More...

void	cutTriangles (const Point2 &knifeStart, const Point2 &knifeEnd, bool bTurnEdgesIntoConstraints)
	Cut through a triangulation. More...

void	cutTriangles (std::vector< Segment2 > &vSegments, bool bTurnEdgesIntoConstraints)
	Cut through a triangulation. More...

void	deleteConstraintsAndZones ()
	Deletes all constraints and zones. More...

void	deleteZone (Zone2 *pZone)
	Delete a Zone2 object. More...

bool	drape (std::vector< Segment2 > &vSegmentsIn, std::vector< Segment2 > &vSegmentsOut, double offTolerance=0.0, bool bKeepOffSegments=false) const
	Drape segments onto a surface. More...

void	exportTriangulation (FadeExport &fadeExport, bool bWithCustomIndices, bool bClear)
	Export triangulation data. More...

Triangle2 *	getAdjacentTriangle (Point2 p0, Point2 p1) const
	Get the adjacent triangle of an oriented edge. More...

void	getAliveAndDeadConstraintSegments (std::vector< ConstraintSegment2 * > &vAllConstraintSegments) const
	Get all (alive and dead) constraint segments.

void	getAliveConstraintSegments (std::vector< ConstraintSegment2 * > &vAliveConstraintSegments) const
	Get active (alive) constraint segments. More...

ConstraintSegment2 *	getConstraintSegment (Point2 p0, Point2 p1) const
	Retrieve a ConstraintSegment2. More...

void	getConvexHull (bool bAllVertices, std::vector< Point2 * > &vConvexHullPointsOut)
	Compute the convex hull. More...

void	getDirectedEdges (std::vector< Edge2 > &vDirectedEdgesOut) const
	Get directed edges Edges are counterclockwise oriented around their triangle. The present method returns directed edges. That means each edge(a,b) is returend twice, as edge(a,b) and as edge(b,a).

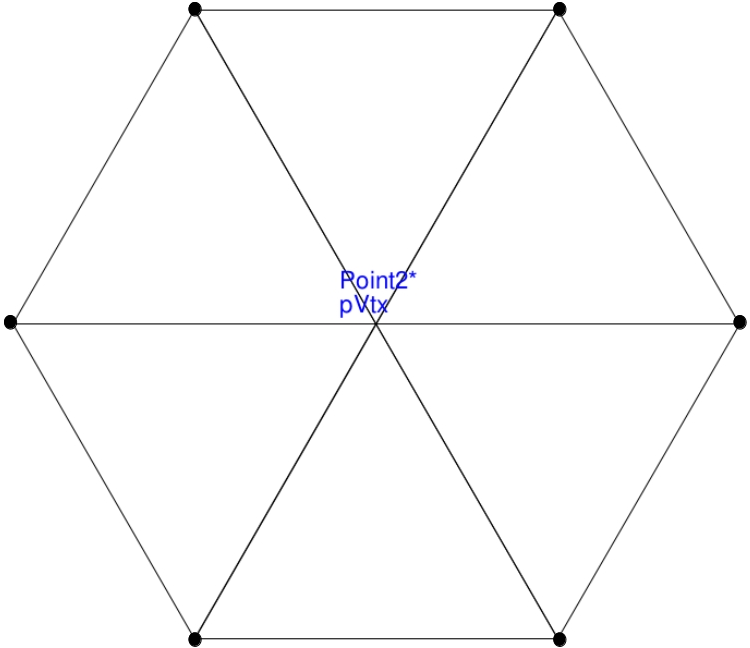

void	getIncidentTriangles (Point2 pVtx, std::vector< Triangle2 > &vIncidentT) const
	Get incident triangles. More...

void	getIncidentVertices (Point2 pVtx, std::vector< Point2 > &vAdjVtx) const
	Get adjacent vertices. More...

double	getMedianEdgeLength2D ()
	Get the median 2D edge length. More...

Point2 *	getNearestNeighbor (const Point2 &p)
	Get nearest neighbor. More...

Orientation2	getOrientation (const Point2 &p0, const Point2 &p1, const Point2 &p2)
	Compute the orientation of 3 points. More...

void	getTrianglePointers (std::vector< Triangle2 * > &vAllTriangles) const
	Get pointers to all triangles. More...

void	getUndirectedEdges (std::vector< Edge2 > &vUndirectedEdgesOut) const
	Get undirected edges. More...

Point2 *	getVertexPointer (const Point2 &p)
	Get vertex pointer. More...

void	getVertexPointers (std::vector< Point2 * > &vAllPoints) const
	Get pointers to all vertices. More...

Voronoi2 *	getVoronoiDiagram ()
	Get the Voronoi diagram of the triangulation. More...

void	getZones (std::vector< Zone2 * > &vZones) const
	Retrieves all zones of the triangulation. More...

bool	hasArea () const
	Check if the triangulation contains any triangles. More...

Zone2 *	importTriangles (std::vector< Point2 > &vPoints, bool bReorientIfNeeded, bool bCreateExtendedBoundingBox)
	Import Triangles (deprecated in favor of the robust version) More...

Zone2 *	importTriangles_robust (std::vector< Point2 > &vPoints)
	Import Triangles - Robust (Error-tolerant version) More...

Point2 *	insert (const Point2 &p)
	Insert a single point. More...

void	insert (const std::vector< Point2 > &vInputPoints)
	Insert a vector of points. More...

void	insert (const std::vector< Point2 > &vInputPoints, std::vector< Point2 * > &vHandles)
	Insert points from a std::vector<Point2> and store pointers in `vHandles`. More...

void	insert (int numPoints, double aCoordinates, Point2 *aHandles)
	Insert points from an array. More...

bool	isConstraint (Point2 p0, Point2 p1) const
	Check if an edge is a constraint edge. More...

bool	isConstraint (Point2 *pVtx) const
	Check if a vertex is a constraint vertex. More...

bool	isConstraint (Triangle2 *pT, int ith) const
	Check if an edge is a constraint edge. More...

bool	load (const char filename, std::vector< Zone2 > &vZones)
	Load a triangulation from a binary file. More...

bool	load (std::istream &stream, std::vector< Zone2 * > &vZones)
	Load a triangulation from a binary file. More...

Triangle2 *	locate (const Point2 &p)
	Locate a triangle that contains p. More...

double	measureTriangulationTime (const std::vector< Point2 > &vPoints)
	Measure the Delaunay triangulation time. More...

size_t	numberOfPoints () const
	Number of points. More...

size_t	numberOfTriangles () const
	Number of triangles. More...

void	printLicense () const
	Prints license information.

void	refine (Zone2 *pZone, double minAngleDegree, double minEdgeLength, double maxEdgeLength, bool bAllowConstraintSplitting)
	Delaunay refinement. More...

void	refineAdvanced (MeshGenParams *pParameters)
	Delaunay refinement and grid meshing. More...

void	remove (Point2 *pVertex)
	Remove a single vertex. More...

void	remove (std::vector< Point2 * > &vPoints)
	Remove vertices. More...

Zone2 *	replicateZoneBoundary (Zone2 *pZoneIn)
	Replicate the boundaries of a zone in the current Fade_2D instance. More...

void	reset ()
	Reset the triangulation. More...

bool	saveTriangulation (const char filename, std::vector< Zone2 > &vSaveZones)
	Save a triangulation to a binary file. More...

bool	saveTriangulation (std::ostream &stream, std::vector< Zone2 * > &vSaveZones)
	Save a triangulation to a binary file. More...

bool	saveZones (const char filename, std::vector< Zone2 > &vSaveZones)
	Save zones to a binary file. More...

bool	saveZones (std::ostream &stream, std::vector< Zone2 * > &vSaveZones)
	Save zones to a binary file. More...

void	setFastMode (bool bFast)
	Set fast mode. More...

int	setNumCPU (int numCPU)
	Set the number of CPU cores for multithreading (deprecated) More...

void	show (const char *filename, bool bWithConstraints=true) const
	Draws the triangulation as a PostScript or PDF file. More...

void	show (Visualizer2 *pVis, bool bWithConstraints=true) const
	Draws the triangulation as a PostScript or PDF file. More...

void	showVtk (const char *filename, VtkColor color, VtkColor constraintColor=VTK_TRANSPARENT) const
	Draws the triangulation using the VTK file format. More...

void	showVtk (VtkWriter *pVtkWriter, VtkColor color, VtkColor constraintColor=VTK_TRANSPARENT) const
	Draws the triangulation using the VTK file format. More...

void	statistics (const char *s) const
	Statistics. More...

void	subscribe (MsgType msgType, MsgBase *pMsg)
	Registers a message receiver. More...

void	unsubscribe (MsgType msgType, MsgBase *pMsg)
	Unregisters a message receiver. More...

void	writeObj (const char *filename) const
	Write the current triangulation to an .obj file. More...

void	writeObj (const char filename, Zone2 pZone) const
	Write a Zone2 an .obj file. More...

void	writeWebScene (const char *path) const
	Create a scene of a triangulation that can be viewed in a web browser. More...

void	writeWebScene (const char path, Zone2 pZone) const
	Create a scene of a Zone2 that can be viewed in a web browser. More...

Detailed Description

The library comes in two versions: 2D and 2.5D. The 2D version computes classic Delaunay triangulations in the xy-plane, while the 2.5D version includes a z-coordinate and provides additional algorithms for lifted triangulations.

A 2D Delaunay triangulation with constraint segments

2D Delaunay triangulation with constraint edges.

A 2.5D Delaunay triangulation or lifted Delaunay triangulation, computed with the 2.5D version of Fade

2.5D Delaunay triangulation (Fade 2.5D)

You are currently viewing the 2D documentation. If you are interested in lifted triangulations, you can switch to the 2.5D documentation.

Constructor & Destructor Documentation

◆ Fade_2D() [1/2]

GEOM_FADE2D::Fade_2D::Fade_2D ( unsigned numExpectedVertices = 3 )

explicit

Parameters

numExpectedVertices The number of points that will be inserted. This is an optional parameter.

◆ Fade_2D() [2/2]

GEOM_FADE2D::Fade_2D::Fade_2D	(	Fade_2D &	other,
		std::vector< Zone2 * >	vZoneIn = `std::vector< Zone2 * >()`,
		std::vector< Zone2 * >	vZoneOut = `std::vector< Zone2 * >()`
	)

This constructor creates a copy of the provided Fade_2D instance, including the option to specify zones to copy into the new instance.

Parameters

[in]	other	The `Fade_2D` instance to copy from.
[in]	vZoneIn	A vector of `Zone2*` objects to copy.
[out]	vZoneOut	Used to return pointers of the copied Zone2* objects in the new triangulation.

Member Function Documentation

◆ applyConstraintsAndZones()

void GEOM_FADE2D::Fade_2D::applyConstraintsAndZones ( )

Deprecated:: The present function applyConstraintsAndZones() as well as the two constraint insertion strategies CIS_CONFORMING_DELAUNAY and CIS_CONFORMING_DELAUNAY_SEGMENT_LEVEL are deprecated. These are only kept for backwards compatibilty. The replacement is CIS_CONSTRAINED_DELAUNAY along with the methods Fade_2D::drape() and/or ConstraintGraph2::makeDelaunay(). See the example code in examples_25D/terrain.cpp

This method establishes conforming constraint segments and zones which depend on them. For technical reasons conforming constraint segments are not immediately established but inserted at the end of the triangulation process. This step must be triggered manually i.e., it is up to the user to call applyConstraintsAndZones() before the resulting triangulation is used. If afterwards the triangulation is changed in any way, applyConstraintsAndZones() must be called again.

◆ checkValidity()

bool GEOM_FADE2D::Fade_2D::checkValidity	(	bool	bCheckEmptyCircleProperty,
		const char *	msg
	)		const

This method checks the validity of the triangulation's data structure. It verifies various properties, and can optionally recheck the empty circle property using slow multiprecision arithmetic for higher accuracy.

Parameters

[in]	bCheckEmptyCircleProperty	A boolean flag that specifies whether multiprecision arithmetic should be used to recheck the empty circle property. Enabling this option will slow down the check.
[in]	msg	A debug message that will be displayed in the terminal output to indicate which call to `checkValidity` is currently running.

◆ computeBoundingBox()

Bbox2 GEOM_FADE2D::Fade_2D::computeBoundingBox ( ) const

This method calculates the smallest axis-aligned bounding box (AABB) that encloses all points currently present in the triangulation.

Returns: Bbox2 An object representing the computed bounding box.

Note: If no points have been inserted into the triangulation yet, the returned Bbox2 object is invalid. In this case, calling Bbox2::isValid() on the returned object will return false.

◆ createConstraint()

ConstraintGraph2* GEOM_FADE2D::Fade_2D::createConstraint	(	std::vector< Segment2 > &	vSegments,
		ConstraintInsertionStrategy	cis,
		bool	bOrientedSegments = `false`
	)

Parameters

vSegments	Segments to be inserted as enforced edges of the triangulation.
cis	Use CIS_CONSTRAINED_DELAUNAY, the supported constraint-insertion-strategy.
bOrientedSegments	Specifies whether the input segments in `vSegments` are oriented with a counterclockwise direction around an enclosed area. This property is required if the returned ConstraintGraph2 object shall be used for later Zone2 creation. If `bOrientedSegments` is false and `vSegments` represents a simple polygon, the edges are automatically reoriented to establish this property. For complex or uncertain polygon orientations, use the PolygonClipper to repair and orient `vSegments` upfront.

Returns: A pointer to the created ConstraintGraph2 object

The present method subdivides the segments only if required, which is the case if existing vertices or constraint edges are crossed. If you want to subdivide the created constraint edges subsequently to achieve better triangle shapes (see the third image), use ConstraintGraph2::makeDelaunay() on the returned ConstraintGraph2.

See also: ConstraintGraph2::makeDelaunay() subdivides a ConstraintGraph2 to achieve better triangle shapes.; https://www.geom.at/example4-zones-defined-areas-in-triangulations/ provides examples of Zone2 creation.; https://www.geom.at/polygon-clipper-repairing-polygons/ contains examples of repairing polygons.

Delaunay triangulation without constraints

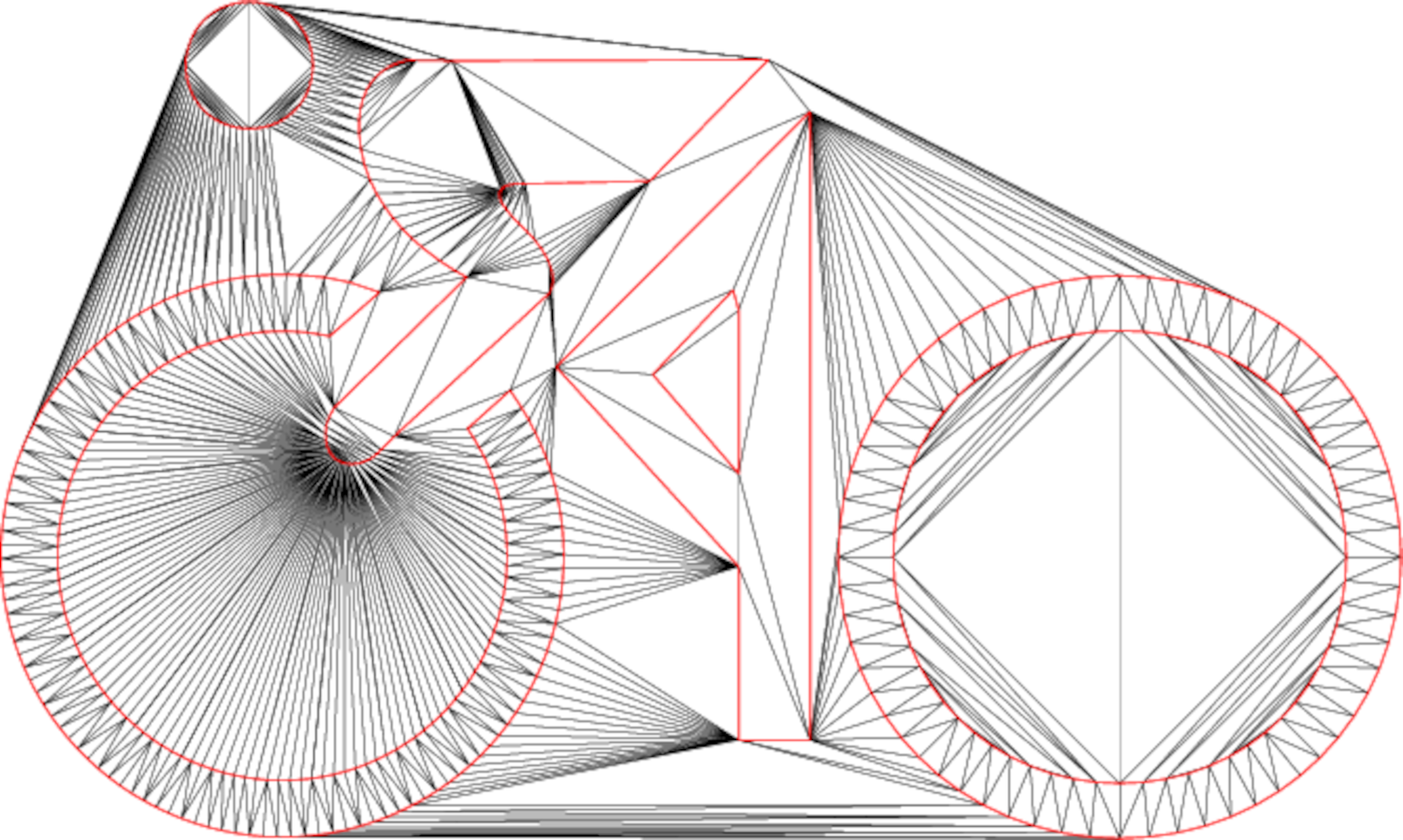

Constrained Delaunay triangulation

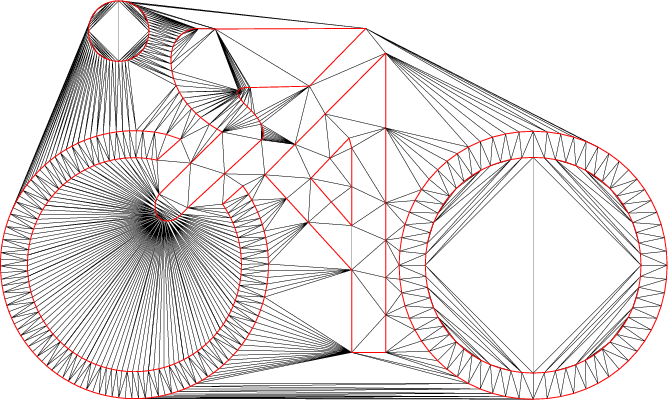

Conforming Delaunay triangulation using ConstraintGraph::makeDelaunay()

◆ createZone() [1/4]

Zone2* GEOM_FADE2D::Fade_2D::createZone	(	const std::vector< ConstraintGraph2 * > &	vConstraintGraphs,
		ZoneLocation	zoneLoc,
		const Point2 &	startPoint,
		bool	bVerbose = `true`
	)

Creates a Zone2 object bounded by multiple ConstraintGraph2 objects, grown from a seed point.

Zone2, grown from a seed point until the constraint edges limit the growing

Parameters

vConstraintGraphs	A vector of `ConstraintGraph2` objects.
zoneLoc	The `ZoneLocation` must be `ZL_GROW`.
startPoint	The point from which the area grows until the borders defined in `vConstraintGraphs` are reached.
bVerbose	Is `true` by default and triggers a warning if `NULL` is returned.

Returns: A pointer to the created Zone2 object, or NULL if zoneLoc != ZL_GROW or no triangles exist.

◆ createZone() [2/4]

Zone2* GEOM_FADE2D::Fade_2D::createZone	(	ConstraintGraph2 *	pConstraintGraph,
		ZoneLocation	zoneLoc,
		bool	bVerbose = `true`
	)

Creates a Zone2 object which represents an area of a triangulation.

Parameters

[in]	zoneLoc	can be ZL_INSIDE, ZL_OUTSIDE or ZL_GLOBAL.
[in]	pConstraintGraph	points to an existing ConstraintGraph2 object (which must be oriented) or is NULL if zoneLoc is ZL_GLOBAL.
[in]	bVerbose	is `true` by default and causes a warning if NULL is returned.

Returns: A pointer to the created Zone2 object, or NULL if no triangles exist, or if pConstraintGraph->isOriented() returns false. Make sure to check for NULL before proceeding.

A Zone in a 2D Delaunay triangulation

◆ createZone() [3/4]

Zone2* GEOM_FADE2D::Fade_2D::createZone	(	ConstraintGraph2 *	pConstraintGraph,
		ZoneLocation	zoneLoc,
		const Point2 &	startPoint,
		bool	bVerbose = `true`
	)

Creates a Zone2 object bounded by a ConstraintGraph2 object, grown from a seed point.

Zone2, grown from a seed point until the constraint edges limit the growing

Parameters

pConstraintGraph	A pointer to the `ConstraintGraph2` that defines the boundary.
zoneLoc	The `ZoneLocation` must be `ZL_GROW`.
startPoint	The point from which the area grows until the borders defined in `pConstraintGraph` are reached.
bVerbose	Is `true` by default and triggers a warning if `NULL` is returned.

Returns: A pointer to the created Zone2 object, or NULL if zoneLoc != ZL_GROW or no triangles exist.

◆ createZone() [4/4]

Zone2* GEOM_FADE2D::Fade_2D::createZone	(	std::vector< Triangle2 * > &	vTriangles,
		bool	bVerbose = `true`
	)

This method creates a Zone2 defined by the triangles in @p vTriangles.

Parameters

vTriangles	A vector of `Triangle2*` pointers defining the area.
bVerbose	Triggers a warning if `NULL` is returned. Default: `true`.

Returns: A pointer to the created Zone2 object, or NULL if vTriangles is empty.

Zone2, defined by triangles

◆ createZone_cookieCutter() [1/2]

Zone2* GEOM_FADE2D::Fade_2D::createZone_cookieCutter	(	std::vector< Segment2 > &	vSegments,
		bool	bProtectEdges
	)

Deprecated:: This method is deprecated. It works as expected, but does not support zones with holes. To avoid behavioral changes, this method is left unchanged and has been deprecated in favor of the new method Fade_2D::createZone_cookieCutter2(), which allows for zones with holes, is faster, and provides improved numerical accuracy.

◆ createZone_cookieCutter() [2/2]

Zone2* GEOM_FADE2D::Fade_2D::createZone_cookieCutter	(	std::vector< Segment2 > &	vSegments,
		bool	bProtectEdges,
		ConstraintGraph2 *&	pProtectedEdgesCG,
		ConstraintGraph2 *&	pBoundaryCG
	)

Deprecated:: This method is deprecated. It works as expected, but does not support zones with holes. To avoid behavioral changes, this method is left unchanged and has been deprecated in favor of the new method Fade_2D::createZone_cookieCutter2(), which allows for zones with holes, is faster, and provides improved numerical accuracy.

◆ createZone_cookieCutter2() [1/2]

Zone2* GEOM_FADE2D::Fade_2D::createZone_cookieCutter2	(	std::vector< Segment2 > &	vSegments,
		bool	bProtectEdges
	)

The Cookie Cutter cuts out a part of a 2D or 2.5D triangulation and returns it as a Zone2 object.

Cookie Cutter: Cuts a part of the triangulation, with the red polygon (showing vSegments) defining the shape.

Parameters

[in]	vSegments	specifies the input polygon.
[in]	bProtectEdges	specifies if existing edges shall be locked by turning them into constraint segments

Returns: a Zone2 object consisting of all triangles inside the polygon or NULL when the operation has failed due to unmet preconditions.

◆ createZone_cookieCutter2() [2/2]

Zone2* GEOM_FADE2D::Fade_2D::createZone_cookieCutter2	(	std::vector< Segment2 > &	vSegments,
		bool	bProtectEdges,
		ConstraintGraph2 *&	pProtectedEdgesCG,
		ConstraintGraph2 *&	pBoundaryCG
	)

The Cookie Cutter cuts out a part of a triangulation and returns it as a Zone2 object.

Cookie Cutter: Cuts a part of the triangulation, with the red polygon (showing vSegments) defining the shape.

Parameters

[in]	vSegments	specifies the input polygon.
[in]	bProtectEdges	specifies if existing edges shall be locked by turning them into constraint segments
[out]	pProtectedEdgesCG	is used to return the ConstraintGraph2* of edges that have been protected
[out]	pBoundaryCG	is used to return the ConstraintGraph2* of the boundary

Returns: a Zone2 object consisting of all triangles inside the polygon or NULL when the operation has failed due to unmet preconditions.

◆ cutTriangles() [1/2]

void GEOM_FADE2D::Fade_2D::cutTriangles	(	const Point2 &	knifeStart,
		const Point2 &	knifeEnd,
		bool	bTurnEdgesIntoConstraints
	)

Parameters

knifeStart	is one point of the knife segment
knifeEnd	is the second point of the knife segment
bTurnEdgesIntoConstraints	turns all 3 edges of each intersected triangle into constraint segments.

This method inserts a constraint edge knife(knifeStart,knifeEnd). If existing edges E are intersected by knife, then knife is subdivided at the intersection points P.

In any case knife will exist (in a possibly subdivided form) in the result. But a consequence of the insertion of the points P is that the edges E and even edges which are not intersected by knife may be flipped. Use bTurnEdgesIntoConstraints=true to avoid that.

Note: The intersection point of two line segments may not be exactly representable in double precision floating point arithmetic and thus tiny rounding errors may occur. As a consequence two very close intersection points may be rounded to the same coordinates.; When more than one knife segment is inserted then the method void cutTriangles(std::vector<Segment2>& vSegments,bool bTurnEdgesIntoConstraints) should be used. The reason is that each individual cut operation changes the triangulation and thus iterative calls to the present version of the method can lead to a different result.

◆ cutTriangles() [2/2]

void GEOM_FADE2D::Fade_2D::cutTriangles	(	std::vector< Segment2 > &	vSegments,
		bool	bTurnEdgesIntoConstraints
	)

Parameters

vSegments	are the knife segments
bTurnEdgesIntoConstraints	specifies if intersected edges shall automatically be turned into constraints

Same method as void cutTriangles(const Point2& knifeStart,const Point2& knifeEnd,bool bTurnEdgesIntoConstraints) but it takes a vector of segments instead of a single segment. This is the recommended method to cut through a triangulation when more than one knife segment exists.

◆ deleteConstraintsAndZones()

void GEOM_FADE2D::Fade_2D::deleteConstraintsAndZones ( )

This method deletes all ConstraintGraph2 objects, all ConstraintSegment2 objects, and all Zone2 objects. It does not modify existing triangles; existing edges that have been created as constraint segments before are not flipped back to satisfy the 'empty circle property' of a Delaunay triangulation. However, these edges become unprotected, and any subsequent modifications to the triangulation may cause them to be flipped.

Warning: This method is dangerous. It violates the 'empty circle property', and it invalidates the pointers of the deleted objects. Use it only if you are fully aware of the consequences.

◆ deleteZone()

void GEOM_FADE2D::Fade_2D::deleteZone ( Zone2 * pZone )

Zone2 objects are automatically destroyed with their Fade_2D objects. In addition this method provides the possibility to eliminate Zone2 objects earlier.

Note: Zones are designed transparently: When two zones Z1 and Z2 are combined to a new one Z3 (for example through a boolean operation) then Z1, Z2 and Z3 form a tree datastructure such that changes in the leaf nodes Z1 and Z2 can propagate up to the root node Z3. For this reason Z1 and Z2 must be alive as long as Z3 is used.

◆ drape()

bool GEOM_FADE2D::Fade_2D::drape	(	std::vector< Segment2 > &	vSegmentsIn,
		std::vector< Segment2 > &	vSegmentsOut,
		double	offTolerance = `0.0`,
		bool	bKeepOffSegments = `false`
	)		const

Projects the segments from vSegmentsIn onto the triangulation. Degenerate input segments are ignored. Segments are subdivided at intersections with triangulation edges.

Parameters

[in]	vSegmentsIn	Input segments.
[out]	vSegmentsOut	Output segments.
[in]	offTolerance	Used to prevent truncation of segments that are slightly outside the convex hull due to tiny rounding errors. If this value is greater than 0, segment endpoints slightly outside the convex hull of the triangulation will be inserted into the triangulation.
[in]	bKeepOffSegments	Specifies whether segments outside the triangulation should be kept. Default: `false`.

Returns: true if all input segments are inside the convex hull of the triangulation. Otherwise, false is returned, and the result is still valid but only contains the segment parts inside the convex hull unless bKeepOffSegments is true.

Drape: Input segments are draped (red) onto a TIN. They are subdivided (blue points) at intersections with triangulation edges

Note: Draping segments onto a triangulation does not insert them. Use Fade_2D::createConstraint() for that purpose.

◆ exportTriangulation()

void GEOM_FADE2D::Fade_2D::exportTriangulation	(	FadeExport &	fadeExport,
		bool	bWithCustomIndices,
		bool	bClear
	)

This method exports triangulation data from the current Fade instance to a simple FadeExport structure, which is defined in a header and consists solely of arrays containing basic data types. The method also offers the option to clear the Fade object during the export to prevent memory usage peaks.

Parameters

[out]	fadeExport	A `FadeExport` structure that will hold the requested triangulation data after the export operation.
[in]	bWithCustomIndices	A boolean flag that determines whether custom indices for the points should be included in the export.
[in]	bClear	A boolean flag that specifies whether the Fade instance should be cleared during the export to free memory. If `true`, all memory associated with the Fade instance is released, and all existing pointers to its objects will become invalid.

◆ getAdjacentTriangle()

Triangle2* GEOM_FADE2D::Fade_2D::getAdjacentTriangle	(	Point2 *	p0,
		Point2 *	p1
	)		const

A method to retrieve the counterclockwise adjacent triangle of an oriented edge of the triangulation.

The adjacent triangle of edge (p0,p1)

Parameters

[in] p0,p1 Pointers to the vertices of the triangulation that form the endpoints of the oriented edge.

Returns: A pointer to the Triangle2 containing the oriented edge (p0, p1), or NULL if no such triangle is present.

Note: Recall the counter-clockwise enumeration of vertices in a Triangle2: While an unoriented edge (p0, p1) can have two adjacent triangles, only one of them contains the oriented edge (p0, p1), while the other contains the oriented edge (p1, p0).

◆ getAliveConstraintSegments()

void GEOM_FADE2D::Fade_2D::getAliveConstraintSegments ( std::vector< ConstraintSegment2 * > & vAliveConstraintSegments ) const

This method retrieves the active (alive) constraint segments and stores them in the provided vector.

Parameters

vAliveConstraintSegments A reference to a vector that will be populated with pointers to the active constraint segments.

◆ getConstraintSegment()

ConstraintSegment2* GEOM_FADE2D::Fade_2D::getConstraintSegment	(	Point2 *	p0,
		Point2 *	p1
	)		const

Parameters

[in] p0,p1 The endpoints of the ConstraintSegment2

Returns: A pointer to the ConstraintSegment2 between p0 and p1, or NULL if the segment is not a constraint edge of the triangulation (or is dead because it has been split).

◆ getConvexHull()

void GEOM_FADE2D::Fade_2D::getConvexHull	(	bool	bAllVertices,
		std::vector< Point2 * > &	vConvexHullPointsOut
	)

Computes the convex hull of the triangulation.

Parameters

[in]	bAllVertices	A boolean that determines whether all convex hull points are returned or if collinear ones should be removed.
[out]	vConvexHullPointsOut	A vector used to return the convex hull vertices in counterclockwise order.

◆ getIncidentTriangles()

void GEOM_FADE2D::Fade_2D::getIncidentTriangles	(	Point2 *	pVtx,
		std::vector< Triangle2 * > &	vIncidentT
	)		const

Stores pointers to all triangles around the vertex pVtx into the vector vIncidentT.

Parameters

[in]	pVtx	A pointer to a vertex of the triangulation.
[out]	vIncidentT	A vector used to return pointers to the incident triangles of `pVtx`.

Incident triangles of Point2* pVtx

◆ getIncidentVertices()

void GEOM_FADE2D::Fade_2D::getIncidentVertices	(	Point2 *	pVtx,
		std::vector< Point2 * > &	vAdjVtx
	)		const

Stores pointers to all vertices around the vertex pVtx into the vector vAdjVtx

Parameters

[in]	pVtx	A pointer to a vertex of the triangulation.
[out]	vAdjVtx	A vector used to return pointers to all vertices adjacent to `pVtx`.

Adjacent vertices of Point2* pVtx

◆ getMedianEdgeLength2D()

double GEOM_FADE2D::Fade_2D::getMedianEdgeLength2D ( )

Computes the median edge length of all edges in the triangulation in 2D.

Returns: The median 2D edge length of all edges in the triangulation.

◆ getNearestNeighbor()

Point2* GEOM_FADE2D::Fade_2D::getNearestNeighbor ( const Point2 & p )

This method returns the closest vertex to the point p.

Nearest neighbor query: The query point (red) and the result vertex (blue)

Parameters

[in] p A pointer to the query point.

Returns: A pointer to the closest vertex to p.

◆ getOrientation()

Orientation2 GEOM_FADE2D::Fade_2D::getOrientation	(	const Point2 &	p0,
		const Point2 &	p1,
		const Point2 &	p2
	)

Determines if the ordered points p0, p1, and p2 are collinear, clockwise, or counterclockwise.

Parameters

[in] p0,p1,p2 The points whose orientation is computed.

Returns: ORIENTATION2_COLLINEAR, ORIENTATION2_CW, or ORIENTATION2_CCW.

◆ getTrianglePointers()

void GEOM_FADE2D::Fade_2D::getTrianglePointers ( std::vector< Triangle2 * > & vAllTriangles ) const

This method retrieves pointers to all existing triangles in the triangulation.

Parameters

[out] vAllTriangles A vector used to return the pointers to all triangles.

◆ getUndirectedEdges()

void GEOM_FADE2D::Fade_2D::getUndirectedEdges ( std::vector< Edge2 > & vUndirectedEdgesOut ) const

Retrieves all undirected edges from the triangulation.

Parameters

[out] vUndirectedEdgesOut A vector used to return a unique set of undirected edges.

◆ getVertexPointer()

Point2* GEOM_FADE2D::Fade_2D::getVertexPointer ( const Point2 & p )

Checks if the given point is a vertex of the triangulation. If is a vertex, the function returns a pointer to that vertex. Otherwise, it returns NULL.

Parameters

[in] p The query point.

Returns: A pointer to the vertex if is a vertex of the triangulation, or NULL if is not a vertex.

◆ getVertexPointers()

void GEOM_FADE2D::Fade_2D::getVertexPointers ( std::vector< Point2 * > & vAllPoints ) const

Returns all vertex pointers of the triangulation. The order in which the points are returned is arbitrary.

Parameters

[out] vAllPoints A vector to return the vertex pointers.

Note: For duplicate point insertions, only one vertex pointer exists and it is stored only once. Thus, the number of returned points is smaller than the number of inserted points if duplicate points have been inserted.

◆ getVoronoiDiagram()

Voronoi2* GEOM_FADE2D::Fade_2D::getVoronoiDiagram ( )

This method returns the Voronoi diagram of the existing vertices, which is the dual diagram of their Delaunay triangulation.

Returns: A pointer to a Voronoi2 instance, representing the dual diagram of the triangulation.

Note: The Voronoi diagram is dynamically updated when the triangulation changes.

Warning: While the Voronoi diagram is the dual diagram of a Delaunay triangulation, it is NOT dual to a Constrained Delaunay triangulation, so do not create any constraints in it.

Voronoi diagram

◆ getZones()

void GEOM_FADE2D::Fade_2D::getZones ( std::vector< Zone2 * > & vZones ) const

This method retrieves all the zones in the triangulation and stores their pointers in the provided vector.

Parameters

[out] vZones A vector used to return pointers to all existing Zone2 objects.

◆ hasArea()

bool GEOM_FADE2D::Fade_2D::hasArea ( ) const

A triangulation only contains triangles if at least three non-collinear points exist. If all inserted points are collinear, no triangles can be formed, regardless of how many points have been inserted. This method checks whether the triangulation currently contains any triangles, i.e., if an area exists.

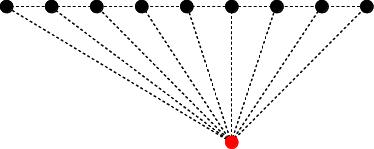

Collinear points (black), triangles are generated as soon as the first non-collinear point (red) is inserted.

Returns: true if at least one triangle exists, false otherwise

◆ importTriangles()

Zone2* GEOM_FADE2D::Fade_2D::importTriangles	(	std::vector< Point2 > &	vPoints,
		bool	bReorientIfNeeded,
		bool	bCreateExtendedBoundingBox
	)

This method imports triangles into an empty triangulation.

Deprecated:: Using this older version of the method is only recommended if you are certain that your input triangulation is 100% correct. If there is any possibility that the input points have been rounded (e.g., due to conversion from 64-bit to 32-bit precision or simply because they were parsed from an ASCII file), you should use the robust version, importTriangles_robust(), instead.

Parameters

vPoints	A vector containing the input triangulation, with 3 subsequent points per triangle.
bReorientIfNeeded	Specifies whether the orientations of the point triples should be checked and corrected. If you are confident that the point triples are already oriented in counterclockwise order, you can skip the orientation test.
bCreateExtendedBoundingBox	If true, the four corners of an extended bounding box will be inserted as dummy points. This can be useful in some cases. If unsure, set this to false.

Returns: A pointer to a Zone2 object, or NULL if the input data is invalid.

◆ importTriangles_robust()

Zone2* GEOM_FADE2D::Fade_2D::importTriangles_robust ( std::vector< Point2 > & vPoints )

This method imports triangles into an empty Fade object. Unlike the classic importTriangles() method, this robust version handles errors in the input data and automatically corrects overlapping triangles. This robust version is very fast, and due to the additional checks, it is also very safe. Thus, it is highly recommended to use it always rather than the classic importTriangles() method.

Parameters

vPoints A vector containing the input triangulation, with 3 subsequent points per triangle.

Returns: A pointer to a Zone2 object, or NULL if the input data is invalid.

Note: A Delaunay triangulation is always convex, and thus additional fill-triangles are created, if necessary, to complete the convex hull. Consequently, when you later call Fade_2D::getTrianglePointers(), you will also receive the additional triangles. If you are only interested in the triangles that you have imported, use the Zone2* returned by the present command, and call Zone2::getTriangles() instead.

◆ insert() [1/4]

Point2* GEOM_FADE2D::Fade_2D::insert ( const Point2 & p )

This method inserts a single point into the triangulation.

Parameters

p	The point to be inserted.

Returns: A pointer to the vertex in the triangulation.

The triangulation keeps a copy of p, and the return value is a pointer to this copy. If duplicate points are inserted, the triangulation does not create new copies but instead returns a pointer to the copy of the first insertion.

Note: This method offers very good performance, but it is still faster to pass all points at once, if possible.

◆ insert() [2/4]

void GEOM_FADE2D::Fade_2D::insert ( const std::vector< Point2 > & vInputPoints )

This method inserts a vector of points into the triangulation.

Parameters

vInputPoints A vector containing the points to be inserted.

Note: To activate multithreading, use setGlobalNumCPU() before using this method.

◆ insert() [3/4]

void GEOM_FADE2D::Fade_2D::insert	(	const std::vector< Point2 > &	vInputPoints,
		std::vector< Point2 * > &	vHandles
	)

This method inserts points from vInputPoints and stores the corresponding pointers to the inserted points in vHandles.

Parameters

vInputPoints	A vector containing the points to be inserted.
vHandles	An empty vector that will be populated with `Point2` pointers.

Internally, the triangulation keeps copies of the inserted points, and these copies are returned in vHandles (in the same order as in vInputPoints). If duplicate points are found in vInputPoints, only one copy will be created, and a pointer to this unique copy will be stored in vHandles for each occurrence of that point.

Note: To activate multithreading, use setGlobalNumCPU() before using this method.

◆ insert() [4/4]

void GEOM_FADE2D::Fade_2D::insert	(	int	numPoints,
		double *	aCoordinates,
		Point2 **	aHandles
	)

This method inserts points from an array of coordinates and stores the corresponding pointers to the inserted points in aHandles.

Parameters

numPoints	The number of points to be inserted.
aCoordinates	An array of 2n double values, representing the coordinates of the points in the format: {x0, y0, x1, y1, ..., xn, yn}.
aHandles	An empty array of size n where pointers to the inserted points will be stored by Fade.

Note: To activate multithreading, use Fade_2D::setNumCPU() before using this method.

◆ isConstraint() [1/3]

bool GEOM_FADE2D::Fade_2D::isConstraint	(	Point2 *	p0,
		Point2 *	p1
	)		const

This method checks whether the edge formed by the points p0 and p1 is a constraint edge.

Parameters

p0,p1 Pointers to endpoints of the edge

Returns: A boolean value indicating whether the edge (p0, p1) is a constraint edge (true) or not (false).

◆ isConstraint() [2/3]

bool GEOM_FADE2D::Fade_2D::isConstraint ( Point2 * pVtx ) const

This method checks whether the vertex pVtx belongs to a constraint edge.

Parameters

pVtx	Pointer to the vertex to check.

Returns: A boolean value indicating whether the vertex pVtx belongs to a constraint edge (true) or not (false).

◆ isConstraint() [3/3]

bool GEOM_FADE2D::Fade_2D::isConstraint	(	Triangle2 *	pT,
		int	ith
	)		const

This method checks whether the edge opposite to the ith vertex in the triangle pT is a constraint edge.

Parameters

pT	The triangle to check.
ith	The index of the vertex in the triangle.

Returns: A boolean value indicating whether the edge opposite to the ith vertex is a constraint edge (true) or not (false).

◆ load() [1/2]

bool GEOM_FADE2D::Fade_2D::load	(	const char *	filename,
		std::vector< Zone2 * > &	vZones
	)

This method loads a triangulation from a binary file, including any custom indices, constraint edges, and zones. The file must have been saved using the saveTriangulation(), saveZones(), or Zone2::save() methods.

Parameters

[in]	filename	The name of the input file.
[out]	vZones	A vector of `Zone2*` that will be populated with pointers to the zones (if any) stored in the file. The order of the pointers will match the order at the time of storage.

Returns: true if the operation was successful, false otherwise.

◆ load() [2/2]

bool GEOM_FADE2D::Fade_2D::load	(	std::istream &	stream,
		std::vector< Zone2 * > &	vZones
	)

This method loads a triangulation from a binary file, including any custom indices, constraint edges, and zones. The file must have been saved using the saveTriangulation(), saveZones(), or Zone2::save() methods.

Parameters

[in]	stream	is an input stream
[out]	vZones	A vector of `Zone2*` that will be populated with pointers to the zones (if any) stored in the file. The order of the pointers will match the order at the time of storage.

Returns: true if the operation was successful, false otherwise.

◆ locate()

Triangle2* GEOM_FADE2D::Fade_2D::locate ( const Point2 & p )

Point location

This method searches for and returns a pointer to the Triangle2 that contains the query point p.

Parameters

[in] p The query point whose containing Triangle2 is to be found.

Returns: A pointer to a Triangle2 containing p, or NULL if p lies outside the triangulation.

◆ measureTriangulationTime()

double GEOM_FADE2D::Fade_2D::measureTriangulationTime ( const std::vector< Point2 > & vPoints )

This method measures the time taken to create a Delaunay triangulation from a given set of points.

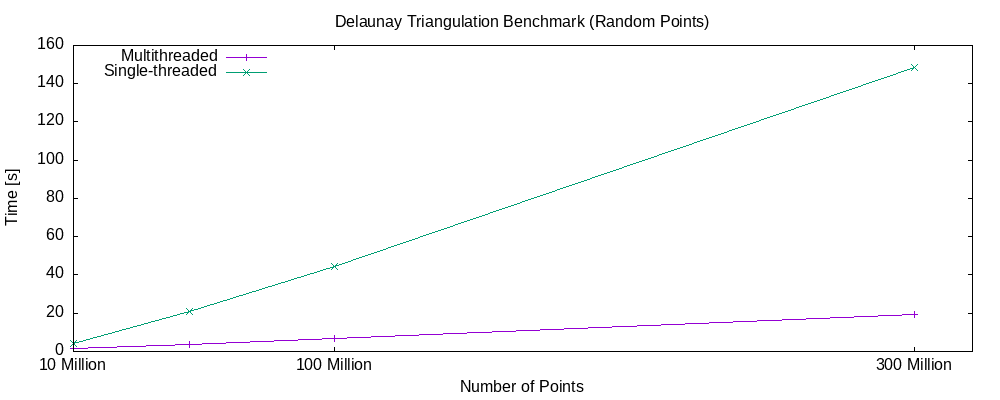

Benchmark of single- and multithreaded Delaunay triangulation (Intel i9 10980XE, Linux)

Parameters

[in] vPoints A vector of points to be inserted into the triangulation.

Returns: The total wall time for point insertion in seconds.

Note: To enable multithreading, use setGlobalNumCPU().

◆ numberOfPoints()

size_t GEOM_FADE2D::Fade_2D::numberOfPoints ( ) const

Computes the number of points in the triangulation.

Returns: the number of points in the triangulation.

Note: Due to possibly duplicate input points the number of points is not stored somewhere but freshly computed in O(n) time. This is fast but you are adviced to avoid calling this method over-frequently in a loop. Duplicate point insertions count only once.

◆ numberOfTriangles()

size_t GEOM_FADE2D::Fade_2D::numberOfTriangles ( ) const

Computes the number of points in the triangulation

Returns: the number of triangles in the triangulation.

◆ refine()

void GEOM_FADE2D::Fade_2D::refine	(	Zone2 *	pZone,
		double	minAngleDegree,
		double	minEdgeLength,
		double	maxEdgeLength,
		bool	bAllowConstraintSplitting
	)

Creates a mesh inside the area given by a Zone2 object.

Parameters

pZone	is the zone whose triangles are refined. Allowed zoneLocation values are ZL_INSIDE and ZL_BOUNDED.
minAngleDegree	(up to 30) is the minimum interior triangle angle
minEdgeLength	is a lower threshold on the edge length. Triangles with smaller edges are not refined.
maxEdgeLength	is an upper threshold on the edge length. Triangles with larger edges are always refined.
bAllowConstraintSplitting	specifies if constraint edges may be splitted

Note: You can convert any Zone2 into a bounded zone using Zone2::convertToBoundedZone().

See also: void refineAdvanced() This method allows more control over the refinement process

◆ refineAdvanced()

void GEOM_FADE2D::Fade_2D::refineAdvanced ( MeshGenParams * pParameters )

This method calls an advanced Delaunay mesh generator and grid mesher. The parameters are encapsulated in the MeshGenParams class, which provides default parameters that can be used as is. Alternatively, client code can derive from MeshGenParams and override the methods and parameters to gain full control over the mesh generation process.

See also: https://www.geom.at/advanced-mesh-generation/ This article provides examples on advanced mesh generation.

Control over the local mesh density

Delaunay meshing with maximum edge length

Grid mesh, axis-aligned

Grid mesh, aligned to a certain direction

◆ remove() [1/2]

void GEOM_FADE2D::Fade_2D::remove ( Point2 * pVertex )

Parameters

pVertex The vertex to be removed.

Note: pVertex must not belong to a constraint edge. Otherwise the vertex will not be removed, and a warning will be issued.

◆ remove() [2/2]

void GEOM_FADE2D::Fade_2D::remove ( std::vector< Point2 * > & vPoints )

Parameters

vPoints are the points to be removed

Note: vPoints must not be vertices of any constraint edge. Otherwise they will not be removed.

◆ replicateZoneBoundary()

Zone2* GEOM_FADE2D::Fade_2D::replicateZoneBoundary ( Zone2 * pZoneIn )

This method replicates only the boundaries of the given Zone2 pZoneIn in the current Fade_2D instance. It is primarily intended to facilitate boolean operations with zones, as these operations require the zones to belong to the same Fade_2D instance.

Parameters

pZoneIn The input zone whose boundaries are to be replicated.

Returns: A new zone, constrained by the replicated boundaries.

◆ reset()

void GEOM_FADE2D::Fade_2D::reset ( )

Resets the triangulation, making it reusable.

◆ saveTriangulation() [1/2]

bool GEOM_FADE2D::Fade_2D::saveTriangulation	(	const char *	filename,
		std::vector< Zone2 * > &	vSaveZones
	)

The saveTriangulation() method saves all triangles of the current triangulation to a binary file. It retains constraint edges and custom vertex indices, if available. If Zone2 pointers are provided, these zones will also be saved, and their order will be preserved.

Parameters

[in]	filename	The name of the output file.
[in]	vSaveZones	A vector of `Zone2` pointers representing zones to be saved.

See also: To store zones alone, use Zone2::save() or Fade_2D::saveZones(). To reload data from saved files, use Fade_2D::load().

Returns: true if the operation was successful, false otherwise.

◆ saveTriangulation() [2/2]

bool GEOM_FADE2D::Fade_2D::saveTriangulation	(	std::ostream &	stream,
		std::vector< Zone2 * > &	vSaveZones
	)

The saveTriangulation() method saves all triangles of the current triangulation to a binary file. It retains constraint edges and custom vertex indices, if available. If Zone2* pointers are provided, these zones will also be saved, and their order will be preserved.

Parameters

	stream	is the output stream
[in]	vSaveZones	A vector of `Zone2` pointers representing zones to be saved.

See also: To store zones alone, use Zone2::save() or Fade_2D::saveZones(). To reload data from saved files, use Fade_2D::load().

Returns: true if the operation was successful, false otherwise.

◆ saveZones() [1/2]

bool GEOM_FADE2D::Fade_2D::saveZones	(	const char *	filename,
		std::vector< Zone2 * > &	vSaveZones
	)

The saveZones() method saves the triangles of the zones in vSaveZones to a binary file. It retains the order of the zones, and maintains the constraint edges and custom vertex indices within the domain.

Note: A Delaunay triangulation is convex without holes, but this may not be the case for the zones being saved. As a result, additional triangles may be added to fill concavities. These extra triangles will belong to the Fade_2D instance, when reloaded, but will not be associated with any reloaded Zone2.

Parameters

[in]	filename	The name of the output file
[in]	vSaveZones	A non-empty vector of `Zone2` pointers specifying the zones to be saved.

Returns: true if the operation was successful, false otherwise.

See also: Use the saveTriangulation() method to store all triangles of a triangulation along with any specified zones. The Zone2::save() method can be used to save a single zone. To reload data from a saved file, use Fade_2D::load().

◆ saveZones() [2/2]

bool GEOM_FADE2D::Fade_2D::saveZones	(	std::ostream &	stream,
		std::vector< Zone2 * > &	vSaveZones
	)

The saveZones() method saves the triangles of the zones in vSaveZones to a binary file. It retains the order of the zones, and maintains the constraint edges and custom vertex indices within the domain.

Note: A Delaunay triangulation is convex without holes, but this may not be the case for the zones being saved. As a result, additional triangles may be added to fill concavities. These extra triangles will belong to the Fade_2D instance, when reloaded, but will not be associated with any reloaded Zone2.

Parameters

[in]	stream	is the name of output stream
[in]	vSaveZones	A non-empty vector of `Zone2` pointers specifying the zones to be saved.

Returns: true if the operation was successful, false otherwise.

See also: Use the saveTriangulation() method to store all triangles of a triangulation along with any specified zones. The Zone2::save() method can be used to save a single zone. To reload data from a saved file, use Fade_2D::load().

◆ setFastMode()

void GEOM_FADE2D::Fade_2D::setFastMode ( bool bFast )

By default, multiple-precision arithmetic may be used (if required) to compute a 100% perfect Delaunay triangulation. However, the quality difference compared to using double precision arithmetic is hardly noticeable. Use this method to skip computationally expensive calculations and improve performance.

Parameters

bFast Set to true to avoid using computationally expensive multiple-precision arithmetic in favor of better performance.

Depending on the position of the input points, enabling setFastMode(true) may have no effect if multiple-precision arithmetic wouldn't be used anyway, or provide considerable acceleration if it would otherwise be needed.

◆ setNumCPU()

int GEOM_FADE2D::Fade_2D::setNumCPU ( int numCPU )

Deprecated:: Use setGlobalNumCPU() instead. This method is kept for backward compatibility. It internally forwards the call to setGlobalNumCPU().

Parameters

[in] numCPU The number of CPU cores to use for multithreading.

◆ show() [1/2]

void GEOM_FADE2D::Fade_2D::show	(	const char *	filename,
		bool	bWithConstraints = `true`
	)		const

show() is a convenience function for quickly generating outputs with a default appearance. It is also possible to use the Visualizer2 class directly to draw arbitrary circles, line segments, vertices, and labels with custom colors.

Parameters

filename	The output file name, e.g., "file.ps" for PostScript or "file.pdf" for PDF.
bWithConstraints	Specifies whether constraint segments should be shown (default: true).

See also: https://www.geom.at/example2-traversing/ for examples of how to use the Visualizer2 class.

◆ show() [2/2]

void GEOM_FADE2D::Fade_2D::show	(	Visualizer2 *	pVis,
		bool	bWithConstraints = `true`
	)		const

show() is a convenience function for quickly generating outputs with a default appearance. It is also possible to use the Visualizer2 class directly to draw arbitrary circles, line segments, vertices, and labels with custom colors.

Parameters

pVis	A pointer to a `Visualizer2` object, which may already contain geometric elements or may later be used to draw additional elements.
bWithConstraints	Specifies whether constraint segments should be shown (default: true).

Note: After adding the last elements, finalize the visualization by calling pVis->writeFile().

See also: https://www.geom.at/example2-traversing/ for examples on how to use the Visualizer2 class.

◆ showVtk() [1/2]

void GEOM_FADE2D::Fade_2D::showVtk	(	const char *	filename,
		VtkColor	color,
		VtkColor	constraintColor = `VTK_TRANSPARENT`
	)		const

This method generates a .VTK file representing the triangulation, which can be viewed with tools like Paraview.

Parameters

filename	The output filename, e.g., "file.vtk".
color	The color for the triangles
constraintColor	The color for the constraint edges. `VTK_TRANSPARENT` hides them.

Note: It is also possible to use the VtkWriter class directly to visualize custom points, line segments, and triangles.

◆ showVtk() [2/2]

void GEOM_FADE2D::Fade_2D::showVtk	(	VtkWriter *	pVtkWriter,
		VtkColor	color,
		VtkColor	constraintColor = `VTK_TRANSPARENT`
	)		const

This method generates a .VTK file representing the triangulation, which can be viewed with tools like Paraview.

Parameters

pVtkWriter	A pointer to a `VtkWriter` object, which may already contain geometric elements or can be used to add further elements.
color	The color for the triangles.
constraintColor	The color for the constraint edges. Use `VTK_TRANSPARENT` to hide them.

Note: Once all elements have been drawn, you need to call pVtkWriter->writeFile() to save the file.; It is also possible to use the VtkWriter class directly to visualize custom points, line segments, and triangles.

◆ statistics()

void GEOM_FADE2D::Fade_2D::statistics ( const char * s ) const

Prints mesh quality statistics.

◆ subscribe()

void GEOM_FADE2D::Fade_2D::subscribe	(	MsgType	msgType,
		MsgBase *	pMsg
	)

This method registers a subscriber to receive messages of a specified type.

Parameters

msgType	The type of message the subscriber will receive, e.g., `MSG_PROGRESS` or `MSG_WARNING`.
pMsg	A pointer to a custom class derived from `MsgBase` that will handle the messages.

◆ unsubscribe()

void GEOM_FADE2D::Fade_2D::unsubscribe	(	MsgType	msgType,
		MsgBase *	pMsg
	)

This method removes a subscriber from receiving messages of a specified type.

Parameters

msgType	The type of message that the subscriber will no longer receive.
pMsg	A pointer to a custom class derived from `MsgBase` representing the subscriber to be removed.

◆ writeObj() [1/2]

void GEOM_FADE2D::Fade_2D::writeObj ( const char * filename ) const

This method writes the current triangulation data to an .obj file, which can be used for visualization and further processing in tools like Meshlab.

Parameters

filename The output filename, e.g., "triangulation.obj".

◆ writeObj() [2/2]

void GEOM_FADE2D::Fade_2D::writeObj	(	const char *	filename,
		Zone2 *	pZone
	)		const

This method writes a Zone2 to an .obj file, which can be used for visualization and further processing in tools like Meshlab.

Parameters

filename	The output filename, e.g., "triangulation.obj".
pZone	A pointer to the pZone to be written.

◆ writeWebScene() [1/2]

void GEOM_FADE2D::Fade_2D::writeWebScene ( const char * path ) const

This method generates a scene of the triangulation, which can be viewed in a web browser.

Parameters

path	The output filename or file path where the scene will be saved.

◆ writeWebScene() [2/2]

void GEOM_FADE2D::Fade_2D::writeWebScene	(	const char *	path,
		Zone2 *	pZone
	)		const

This method generates a scene of a Zone2 object, which can be viewed in a web browser.

Parameters

path	The output filename or file path where the scene will be saved.
pZone	A pointer to the `Zone2` object to be visualized.

The documentation for this class was generated from the following file:

Fade_2D.h

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ Fade_2D() [1/2]

◆ Fade_2D() [2/2]

Member Function Documentation

◆ applyConstraintsAndZones()

◆ checkValidity()

◆ computeBoundingBox()

◆ createConstraint()

◆ createZone() [1/4]

◆ createZone() [2/4]

◆ createZone() [3/4]

◆ createZone() [4/4]

◆ createZone_cookieCutter() [1/2]

◆ createZone_cookieCutter() [2/2]

◆ createZone_cookieCutter2() [1/2]

◆ createZone_cookieCutter2() [2/2]

◆ cutTriangles() [1/2]

◆ cutTriangles() [2/2]

◆ deleteConstraintsAndZones()

◆ deleteZone()

◆ drape()

◆ exportTriangulation()

◆ getAdjacentTriangle()

◆ getAliveConstraintSegments()

◆ getConstraintSegment()

◆ getConvexHull()

◆ getIncidentTriangles()

◆ getIncidentVertices()

◆ getMedianEdgeLength2D()

◆ getNearestNeighbor()

◆ getOrientation()

◆ getTrianglePointers()

◆ getUndirectedEdges()

◆ getVertexPointer()

◆ getVertexPointers()

◆ getVoronoiDiagram()

◆ getZones()

◆ hasArea()

◆ importTriangles()

◆ importTriangles_robust()

◆ insert() [1/4]

◆ insert() [2/4]

◆ insert() [3/4]

◆ insert() [4/4]

◆ isConstraint() [1/3]

◆ isConstraint() [2/3]

◆ isConstraint() [3/3]

◆ load() [1/2]

◆ load() [2/2]

◆ locate()

◆ measureTriangulationTime()

◆ numberOfPoints()

◆ numberOfTriangles()

◆ refine()

◆ refineAdvanced()

◆ remove() [1/2]

◆ remove() [2/2]

◆ replicateZoneBoundary()

◆ reset()

◆ saveTriangulation() [1/2]

◆ saveTriangulation() [2/2]

◆ saveZones() [1/2]

◆ saveZones() [2/2]

◆ setFastMode()

◆ setNumCPU()

◆ show() [1/2]

◆ show() [2/2]

◆ showVtk() [1/2]

◆ showVtk() [2/2]

◆ statistics()

◆ subscribe()

◆ unsubscribe()

◆ writeObj() [1/2]

◆ writeObj() [2/2]

◆ writeWebScene() [1/2]

◆ writeWebScene() [2/2]
